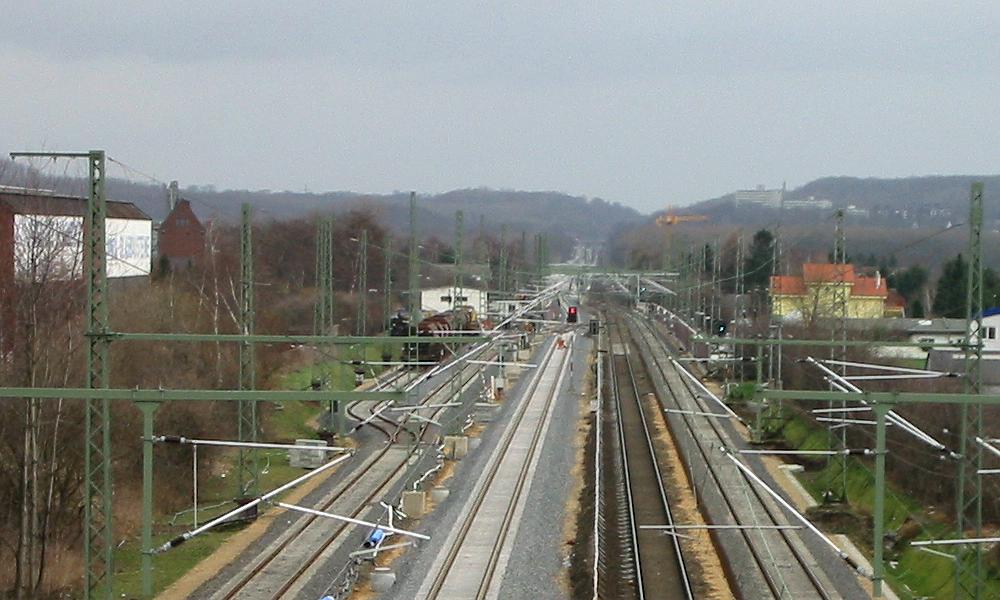

The old station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking eastwards from the Europaring bridge on 10 February 2002. The trains towards Cologne use the new track on the right which will be used for the S-Bahn (urban trains) in the future. The trains towards Aachen use the last remaining old track next to it. Between it and the siding on the left the northern highspeed track is under construction.

Digital photo by Christoph Schmitz

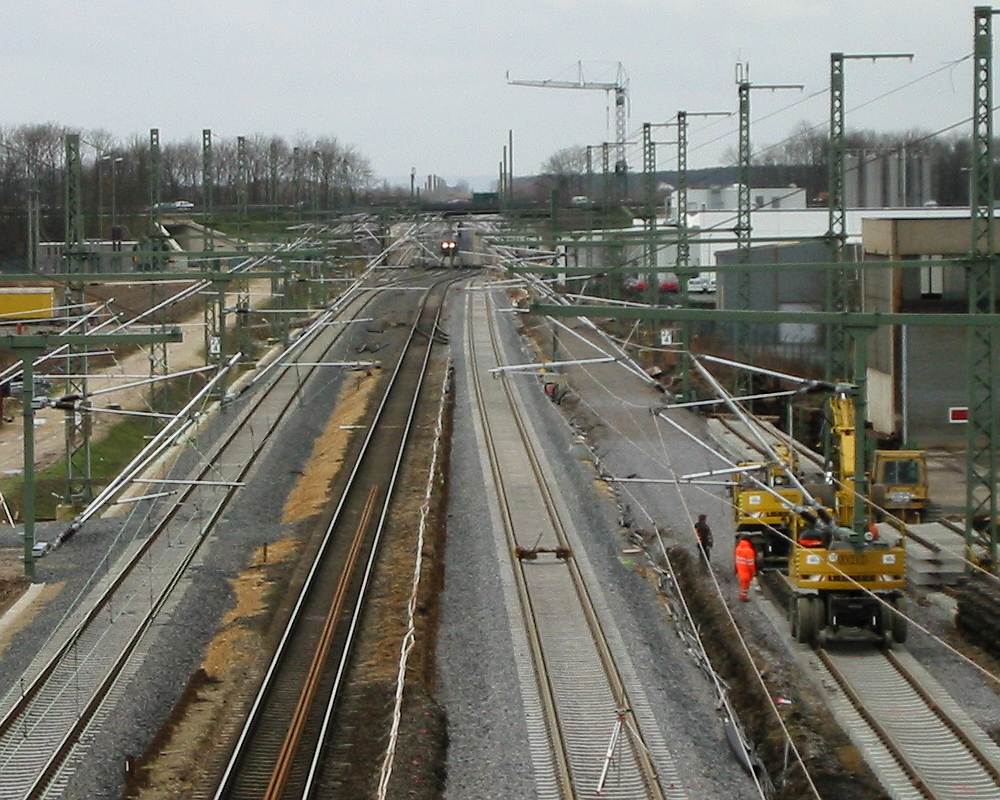

The old station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking westwards from the Europaring bridge on 10 February 2002. The left new highspeed track in the background, where D 419 (Oostende-Cologne) is approaching, is connected to the new track for the S-Bahn (urban trains) on the left. Trains towards Aachen use the last remaining old track, which is connected to the right highspeed track in the background. The northern highspeed track in the foreground seems to be finished, while the siding on the right is beeing rebuilt during the weekend.

Digital photo by Christoph Schmitz




The temporary station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen from the south side on 25 February 2002. Signs at the pedestrian tunnel show on which side of the line the trains for a certain direction can be found. While the outer platforms are further west, the platform between the southern old tracks and the northern new tracks can be recognized by the wooden handlebar. For the time the old tracks are still in service, it is accessed from the north side. When the new tracks will be in service, the wooden stairs being under construction will give a short access from the south side.

Digital photo by Christoph Schmitz




The temporary station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen from the south side on 18 May 2002. On the left the southern temporary platform is visible, behind it are the highspeed tracks and the other temporary platform. The area on this side of the platform, where the old line was in the past, will be used for a single track for the S-Bahn (urban trains) and a platform. In the foreground the stairs leading to the platform are being built.

Digital photo by Christoph Schmitz




The old station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards west on 30 May 2002. Between the two siding tracks and the highspeed tracks, acoustic walls are under construction. Note that one end of the double-slip switch is hand-operated and the other one is automatically operated.

Digital photo by Christoph Schmitz

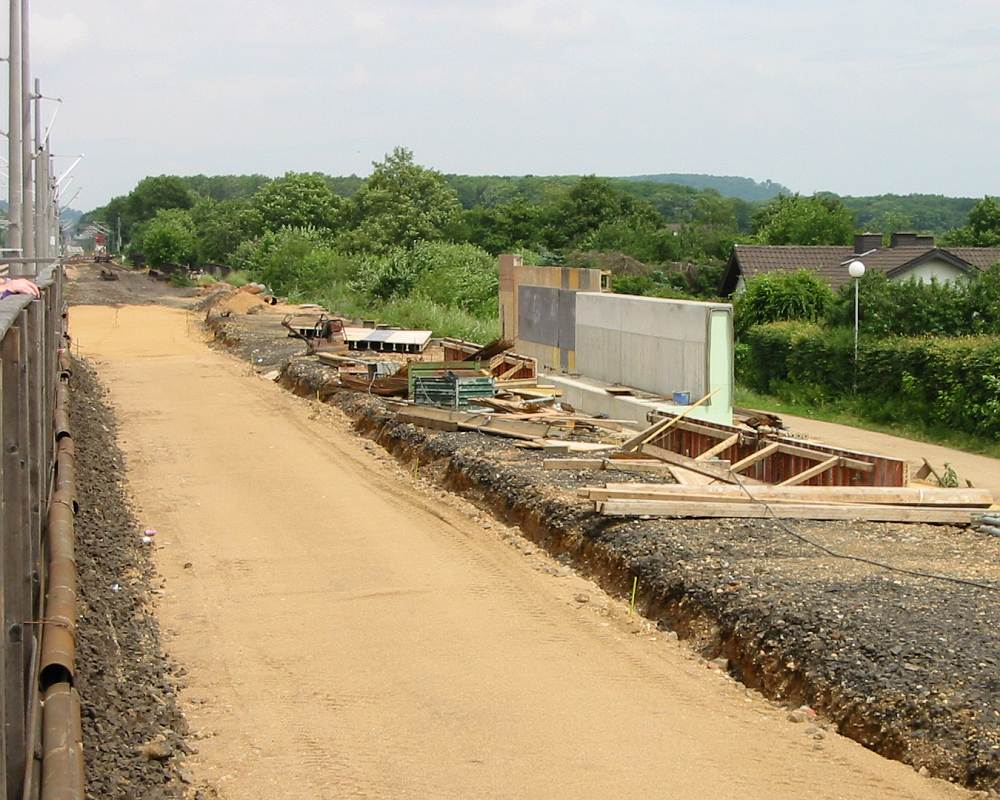

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen from the temporary platform at the southern highspeed track on 15 June 2002. The wall seems to be the back side of the new platform for the S-Bahn (urban trains). The single track will be built on the left.

Digital photo by Christoph Schmitz

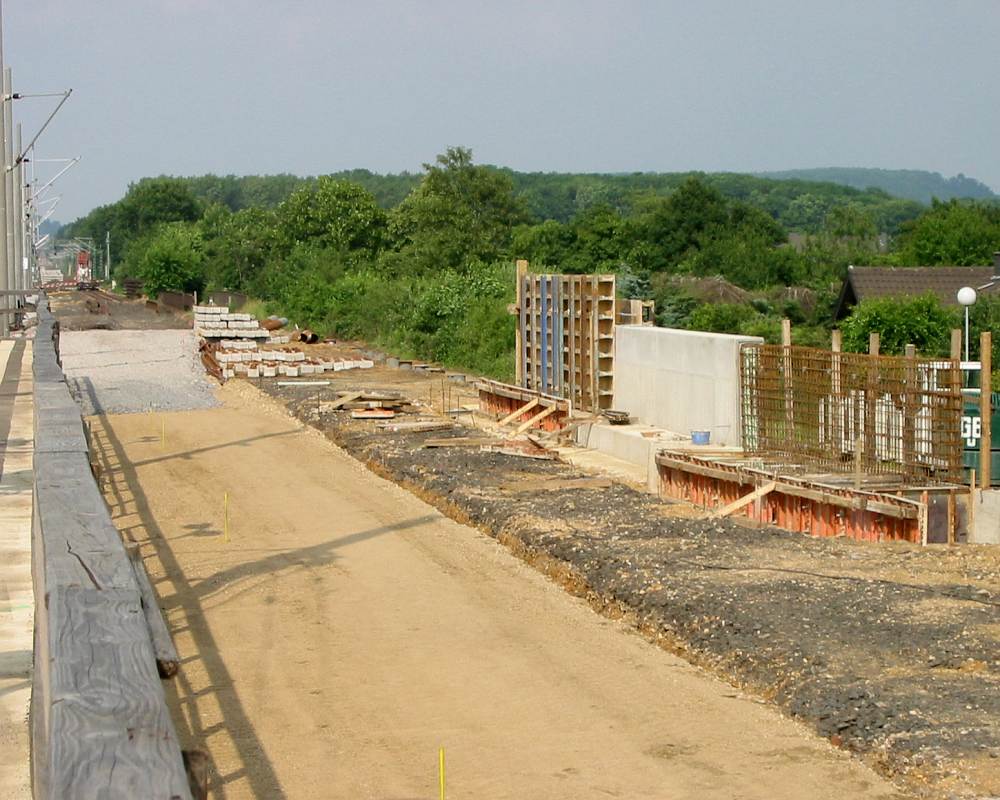

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen from the temporary platform at the southern highspeed track on 21 June 2002. I think the wall being constructed on the right will be the back side of the platform for the S-Bahn (urban trains). On the left where there is a layer of new ballast, a switch will be built, some sleepers and other parts are already stored there. The switch will connect the single track next to the platform with the two tracks running to Horrem.

Digital photo by Christoph Schmitz




The old station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking eastwards from the Europaring bridge on 22 June 2002. In the middle are the two highspeed tracks. The left one is used for the trains towards Aachen, the right one is still under construction. Trains towards Cologne use the rightmost track which will be used for the S-Bahn (urban trains) in the future. On the left is the siding with two tracks in the background.

Digital photo by Christoph Schmitz

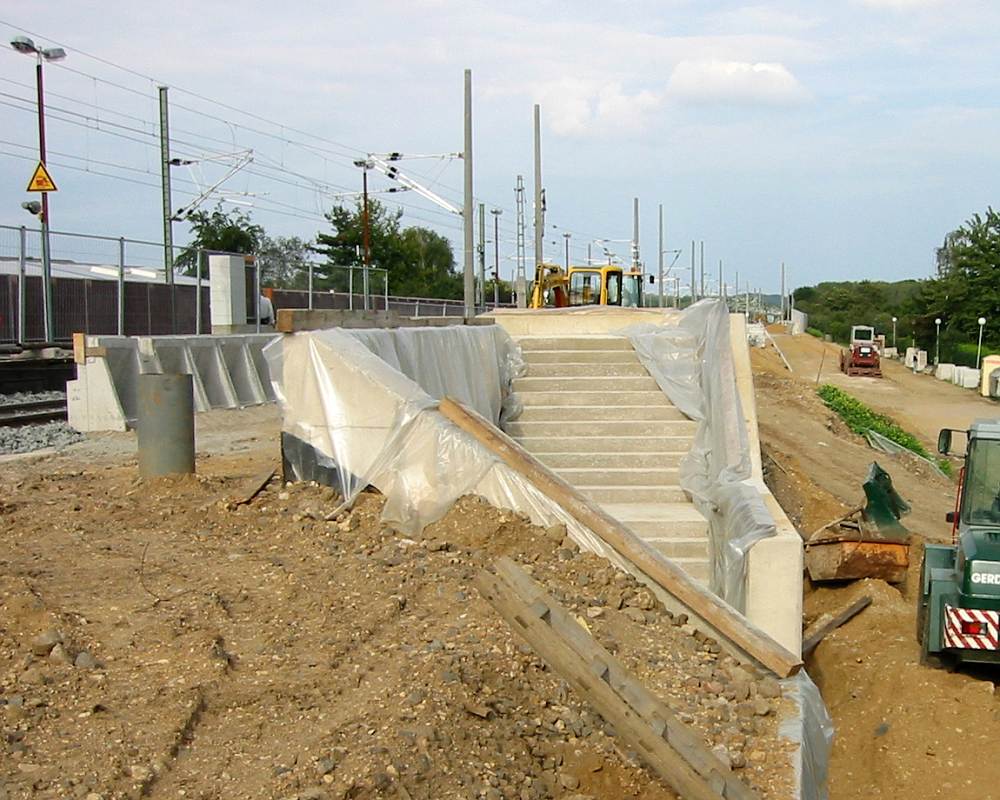

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen from the south side on 19 July 2002. This will be the staircase to the new platform for the S-Bahn (urban trains). The single track of the S-Bahn will run next to the temporary platform on the left.

Digital photo by Christoph Schmitz




The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards east on 19 July 2002. The edge of the new platform for the S-Bahn (urban trains) is being prepared. The single track will run on the left, in the background the switch where it will branch into two tracks is already visible. The platform will be on the right, the upper end of the staircase can be seen in the foreground.

Digital photo by Christoph Schmitz

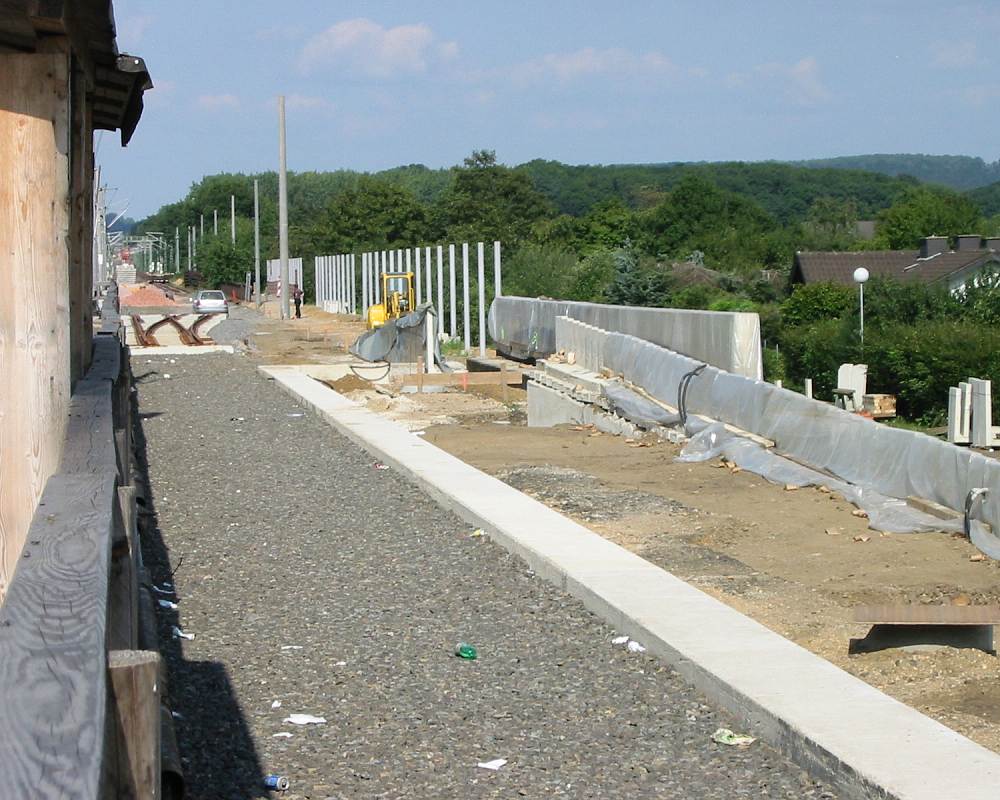

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards east on 15 August 2002. On the left is the first ballast layer for the track of the S-Bahn (urban trains), on the right the platform will be errected. The different walls on the right seem to be intended for a way for pedestrians and bikers that will pass the platform and lead to the Erfttalstraße bridge in the background.

Digital photo by Christoph Schmitz

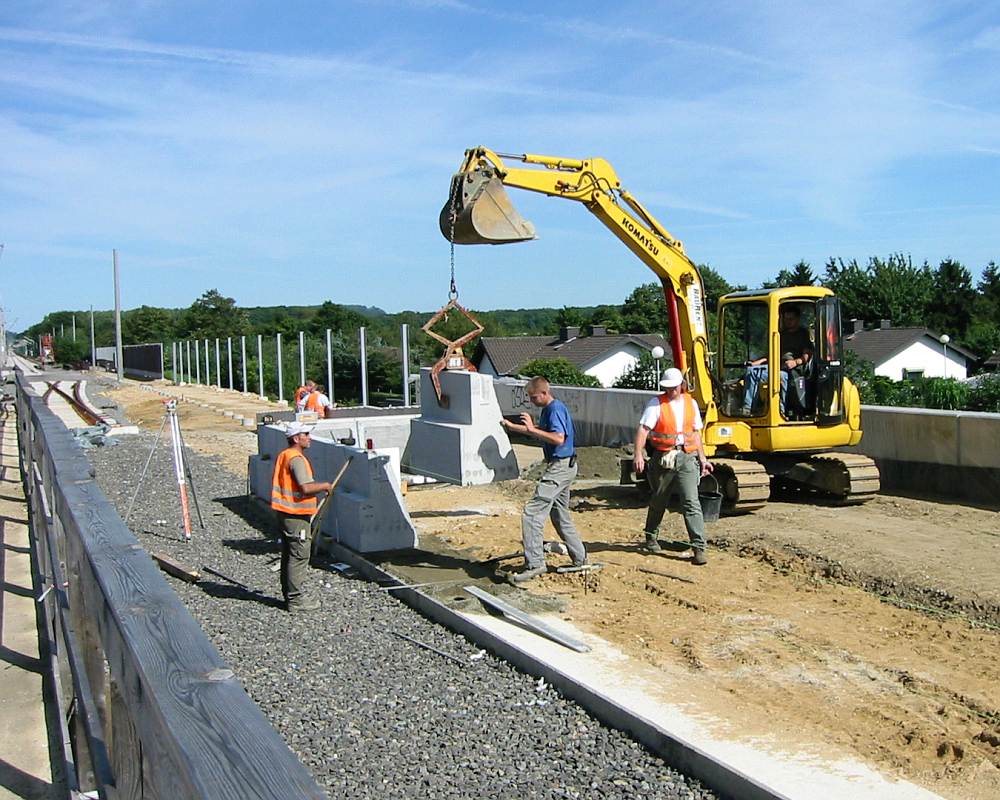

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards east on 2 September 2002. Beginning from the eastern end, the edge of the new platform is errected. On the left, some parts of track for the S-Bahn (urban trains) is already visible, including the switch where the two tracks coming from Horrem will join.

Digital photo by Christoph Schmitz

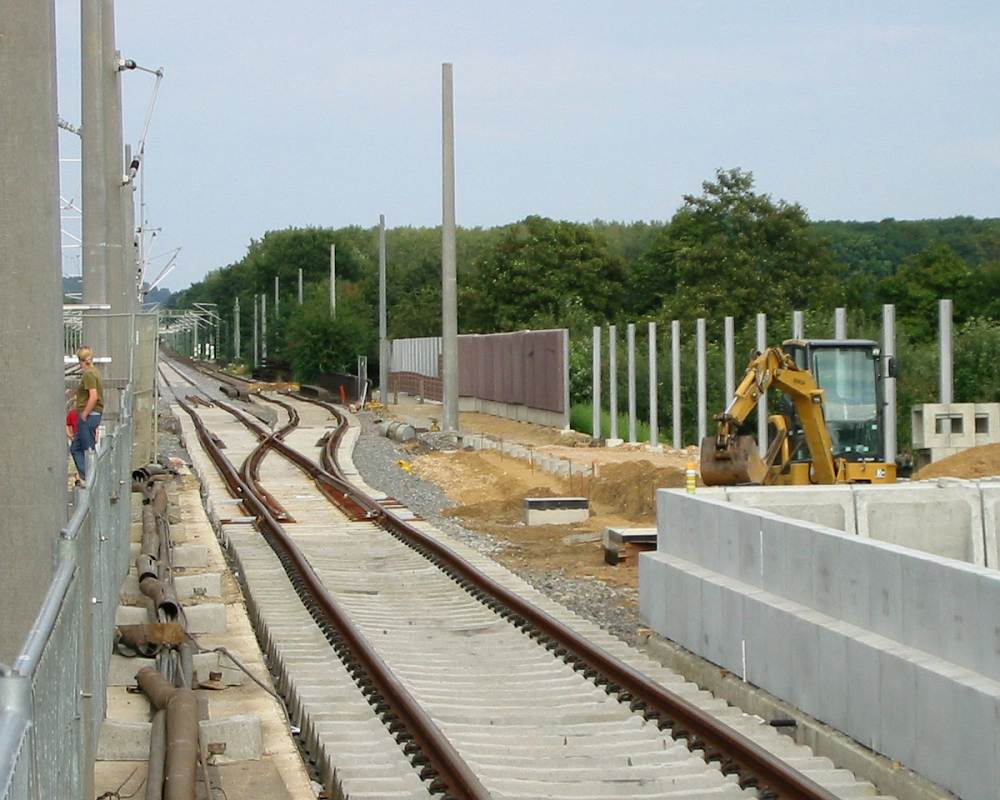

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards east on 7 September 2002. On the right is the end of the platform for the S-Bahn (urban trains). Most of the tracks around the switch are assembled. The single track forks into two tracks towards Horrem east of the station.

Digital photo by Christoph Schmitz




The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards east from the western end on 7 September 2002. The edge of the new platform is nearly finished, some meters are still missing. In the foreground (and further west) the track for the S-Bahn (urban trains) was just tamped, even the rails are covered by grey dust. In the background the track forks into two tracks towards Horrem.

Digital photo by Christoph Schmitz

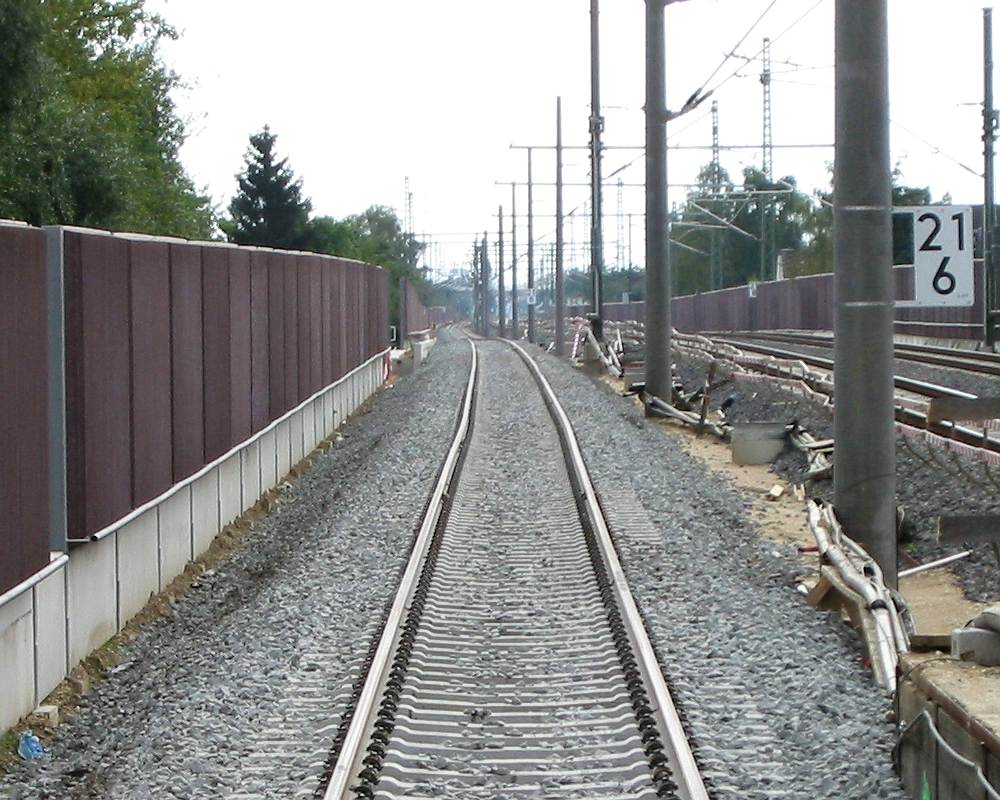

The upgraded line Cologne-Düren (ABS 4) seen looking towards west from the new station of Sindorf on 7 September 2002. This is the single track for the S-Bahn (urban trains) which is still under construction. By now all trains use the two highspeed tracks on the right.

Digital photo by Christoph Schmitz




The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards east on 7 September 2002. These stairs will lead to the western end of the new platform. On the left the edge of the platform is under construction.

Digital photo by Christoph Schmitz

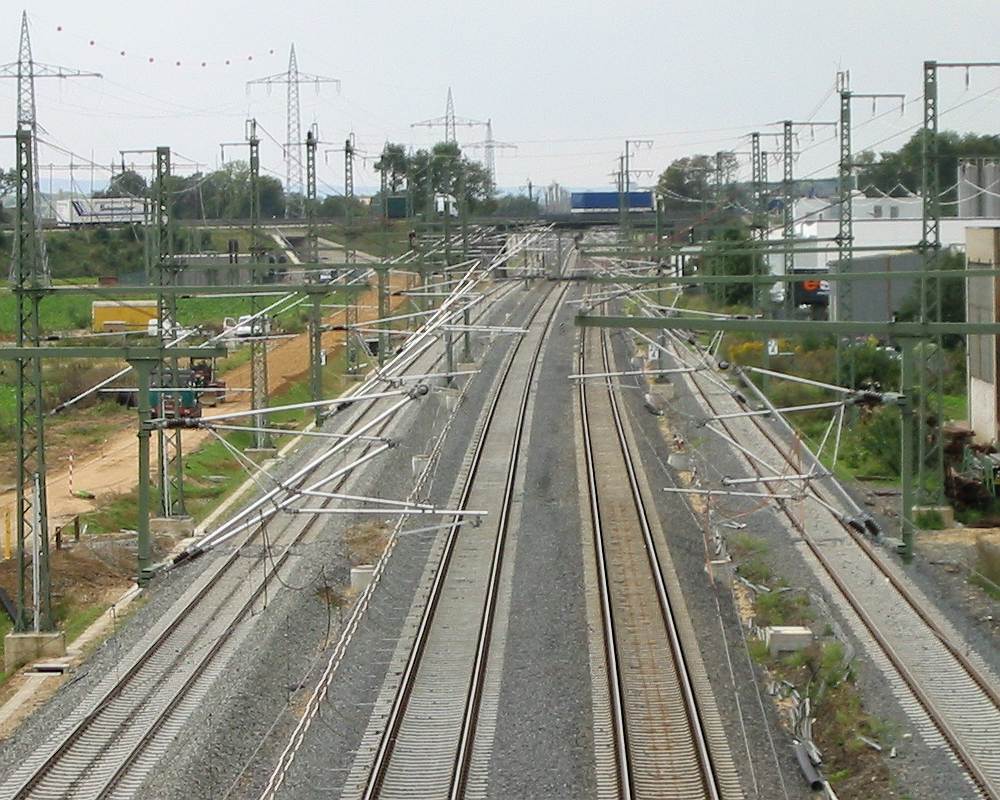

The old station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards east from the Europaring bridge on 17 September 2002. The two highspeed tracks in the middle are used by all trains (at normal speed) at this time, the track for the S-Bahn (urban trains) on the right is not used. On the left is a siding with two tracks. The old catenary masts in this area have been removed. A new distant signal was installed at the S-Bahn track on the right.

Digital photo by Christoph Schmitz




The old station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards west from the Europaring bridge on 17 September 2002. The two highspeed tracks in the middle are used by all trains (at normal speed) at this time, the track for the S-Bahn (urban trains) on the left is not used. On the right is one track of the siding. On the left side of the tracks is the new transformer station which will be supplied by the 110 kV line being under construction in the background.

Digital photo by Christoph Schmitz




The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards east from the western end on 22 September 2002. Sand is filled up to support the surface of the new platform. At the end of the staircase on the right the posts for the acoustic wall are visible.

Digital photo by Christoph Schmitz

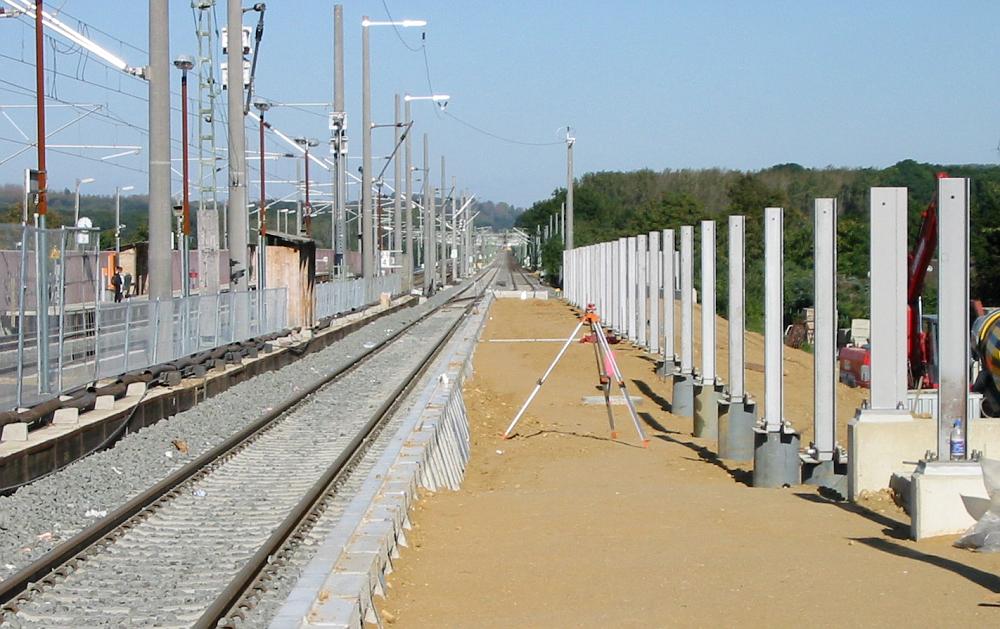

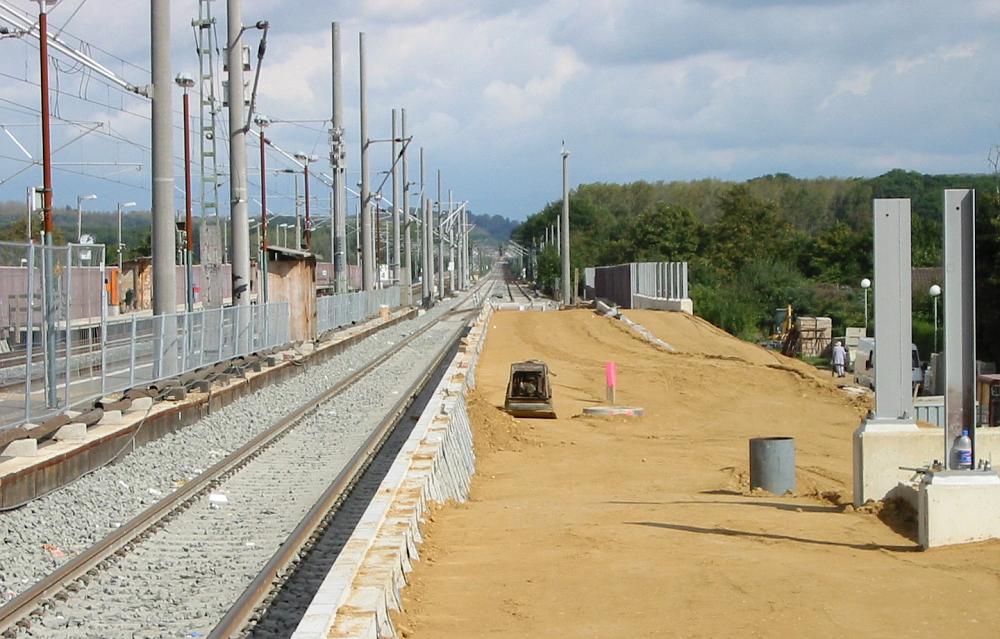

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen looking towards east from the western end on 24 September 2002. The posts for the acoustic wall, also forming the back side of the platform, were set.

Digital photo by Christoph Schmitz

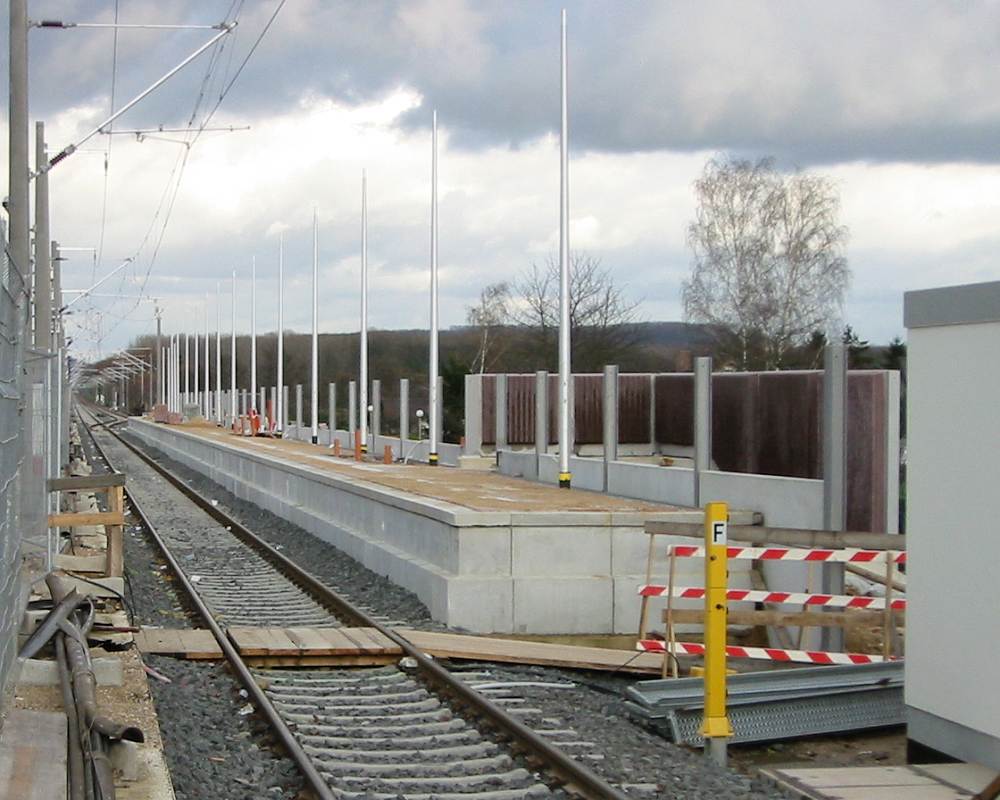

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen from the western end on 9 November 2002. The surface of the platform is partially finished, sand is applied to fill the gaps. Lanterns have been placed in the whole area, so it seems that there will be no roof.

Digital photo by Christoph Schmitz

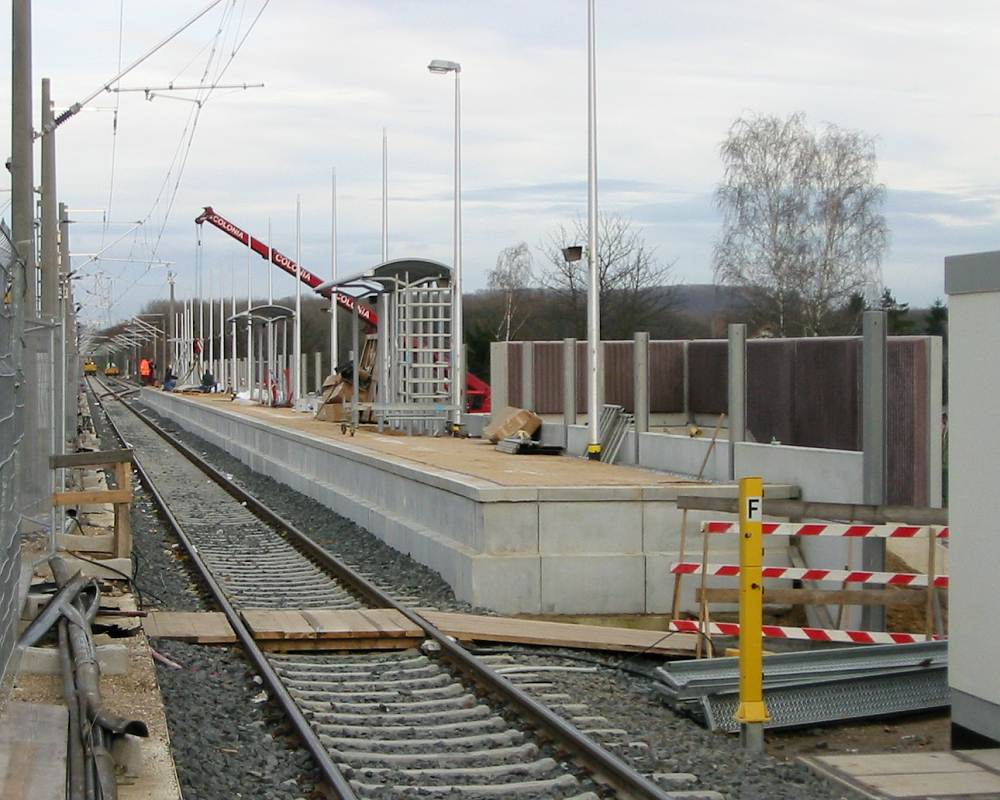

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen from the western end on 12 November 2002. Instead of a big platform roof, small houses are being errected. I doubt that they will give enough shelter for all the passengers which will be waiting here in times of high traffic.

Digital photo by Christoph Schmitz

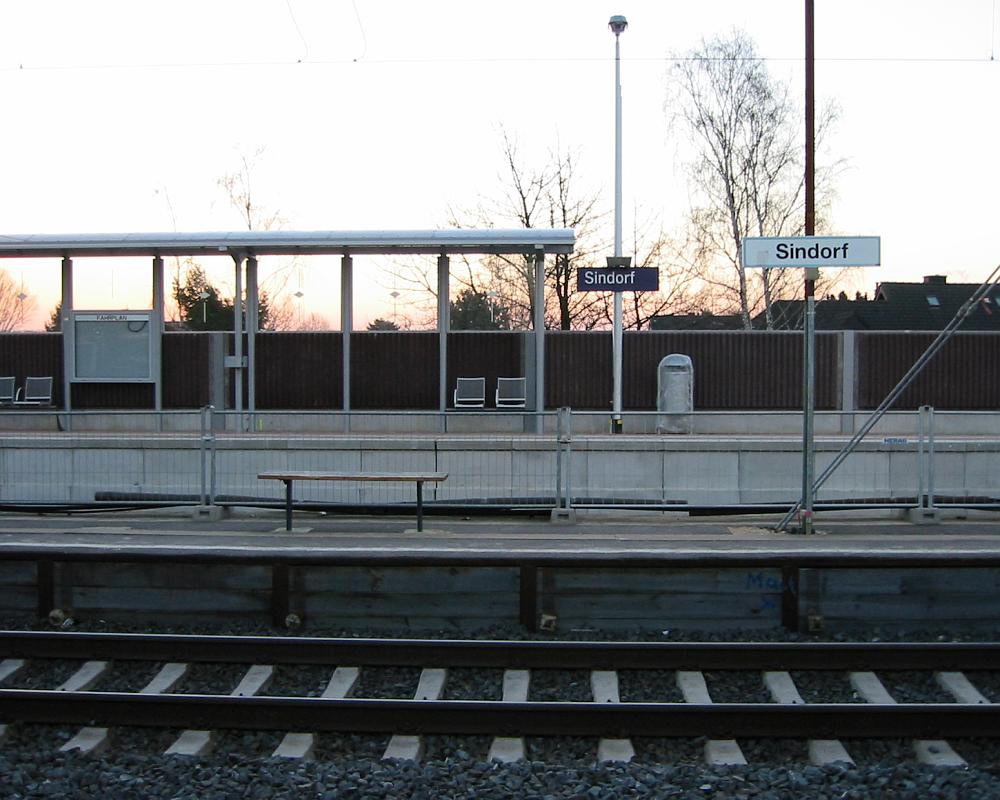

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen from the northern temporary platform in the morning of 9 December 2002. Behind the southern temporary platform (by now used for all trains towards Cologne) is the new platform for the S-Bahn (urban trains), which will go into service on 15 December. The new platform is much better than the temporary one, with a higher level (for stepless entrance), better seats and some roofs (although they might be a bit small for all the passengers). Note that the new station sign has another style than the old one, with white letters on a dark blue background.

Digital photo by Christoph Schmitz

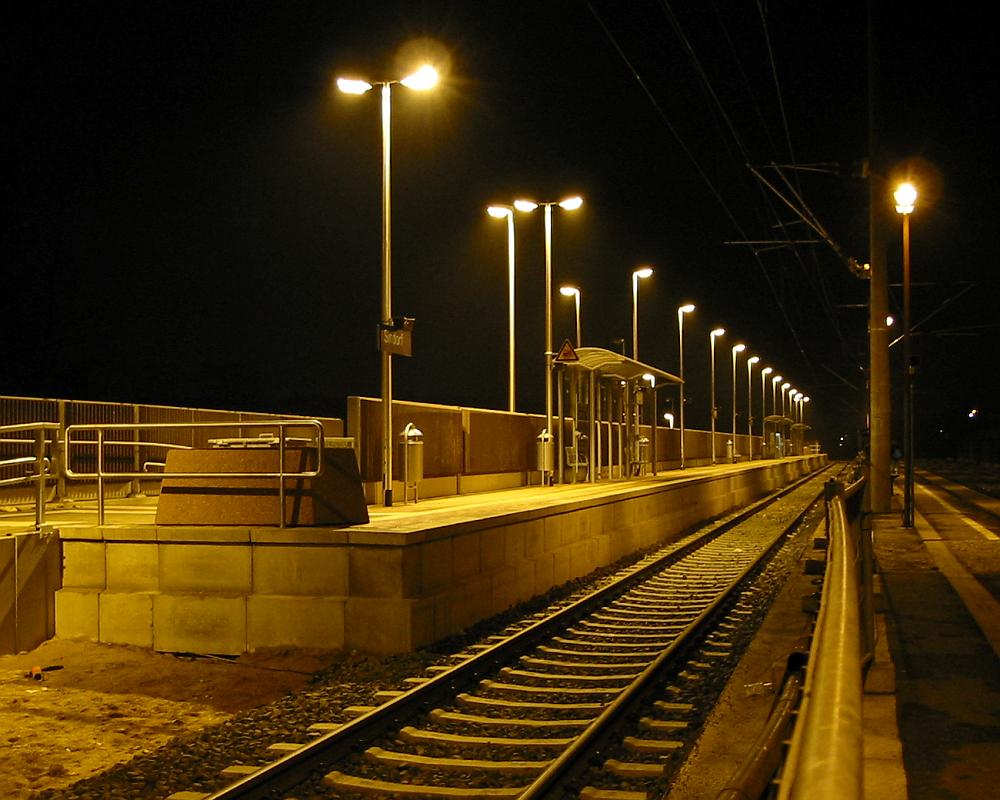

The new station of Sindorf on the upgraded line Cologne-Düren (ABS 4) seen from the western end of the southern temporary platform in the evening of 14 December 2002, some hours before the S-Bahn (urban trains) service at this new platform started. The temporary platforms at the main tracks (at the right edge of the picture) are not used any longer, they will be removed soon.

Digital photo by Christoph Schmitz
