Elten, 16-01-2011.
© Eddy Konijnendijk. |
Railway crossing of DB line 6653 Abandoned railway crossing of the Werdau–Mehltheuer line at route km 9.5 between Teichwolframsdorf and Trünzig. View towards Trünzig. Photo taken in March 2000, 10 months after termination of passenger traffic on 30 May 1999. Clearly visible is the space right of the track which was equipped with a second track for few years between 1938 and 1946. The street is connecting the villages of Trünzig and Langenbernsdorf. Photo: Steffen Mokosch (Steffen.Mokosch@web.de) |
DB Bahnhof Auersmacher / Saarbahn-Haltestelle Auersmacher. Februar 2015. Ein Überschreiten der Gleise zum Bahnsteig nach Saargemünd ist nur nach Anforderung möglich. Photo by M.Koblischka (koblischka@t-online.de) |
Schild im Landeshafen Wörth (Pfalz)
öffnet Bahntor – Palm für Rangierfahrten wenn Tor zu
|
14 January 2006, Karlsruhe Gbf freight yard, Germany
Pedestrian crossing with barriers at the north-eastern throat of Karlsruhe Gbf
14. Januar 2006, Karlsruhe Gbf, Deutschland
Photo by Sven Manias (sven.manias@gmx.de) |
14 January 2006, Karlsruhe Gbf freight yard, Germany
Barrier at the pedestrian crossing at the north-eastern throat of Karlsruhe Gbf, seen from the "rail side". If you look closely you can see the wire cables moving the barrier.
14. Januar 2006, Karlsruhe Gbf, Deutschland
Photo by Sven Manias (sven.manias@gmx.de) |
14 January 2006, Karlsruhe Gbf freight yard, Germany
Barrier at the pedestrian crossing at the north-eastern throat of Karlsruhe Gbf, seen from the "rail side". If you look closely you can see the wire cables moving the barrier.
14. Januar 2006, Karlsruhe Gbf, Deutschland
Photo by Sven Manias (sven.manias@gmx.de) |
18 April 2003 (Good Friday), railway crossing Landgrabenstrasse
(freight line Karlsruhe Gbf - Karlsruhe West), Karlsruhe-Bulach, Germany
Railway crossing with half-barriers, red-yellow traffic signals and a separate barrier for the pedestrian walk at left. The lightning symbols in the middle of the warning crosses signify the catenary.
18. April 2003 (Karfreitag), Bü Landgrabenstraße (Güterstrecke
Karlsruhe Gbf - Karlsruhe West), Karlsruhe-Bulach, Deutschland
Photo by Sven Manias (sven.manias@gmx.de) |
Crossing of a small street with the single track electrified line
from Meißen to Meißen-Triebischtal. Every half hour, a train of
the line S1 from Schöna goes to Meißen-Triebischtal and back. This
line is also used by local trains Meißen - Döbeln - Leipzig.
2001-10-03.
Photo: tobias b köhler |
In the course of modernisation of the railway line from Kiel to Luebeck new automatic level crossing barriers were installed on two streets in the town of Preetz. Deutsche Bahn, however, had forgotten to apply for approval of the equipment used from the authorities before installation. Hence for many weeks railway workers had to manually install barriers across the street before each train passed. 2004 J. C. Stiller (stiller_the_at_symbol_brain.uni-freiburg.de) |
In the course of modernisation of the railway line from Kiel to Luebeck new automatic level crossing barriers were installed on two streets in the town of Preetz. Deutsche Bahn, however, had forgotten to apply for approval of the equipment used from the authorities before installation. Hence for many weeks railway workers had to manually install barriers across the street before each train passed. 2004 J. C. Stiller (stiller_the_at_symbol_brain.uni-freiburg.de) |
In the course of modernisation of the railway line from Kiel to Luebeck new automatic level crossing barriers were installed on two streets in the town of Preetz. Deutsche Bahn, however, had forgotten to apply for approval of the equipment used from the authorities before installation. Hence for many weeks railway workers had to manually install provisional barriers before each train passed and remove them afterwards. Two workers were scheduled to take care of the barriers at this main street. (c) 2004 J. C. Stiller (stiller_the_at_symbol_brain.uni-freiburg.de) |
In the course of modernisation of the railway line from Kiel to Luebeck new automatic level crossing barriers were installed on two streets in the town of Preetz. Deutsche Bahn, however, had forgotten to apply for approval of the equipment used from the authorities before installation. Hence for many weeks railway workers had to manually install provisional barriers before each train passed. Two workers were scheduled to take care of the barriers at a main street. They had plenty of free time to enjoy the sun (c) 2004 J. C. Stiller (stiller_the_at_symbol_brain.uni-freiburg.de) |
Abandoned railway crossing, Richzenhain Former rail crossing of the rail line Waldheim–Rochlitz abandoned in 1998 at Waldheim-Richzenhain, located between Waldheim and Hartha. Like many former secondary lines in Saxony it lost its passenger traffic around 1997. View towards Rochlitz, town exit sign of Waldheim in the background. Photo taken Wednesday 10 July 2013. Photo: Steffen Mokosch (Steffen.Mokosch@web.de) |
Bahnübergang in Pfaffenhofen an der
Zabergäubahn
|

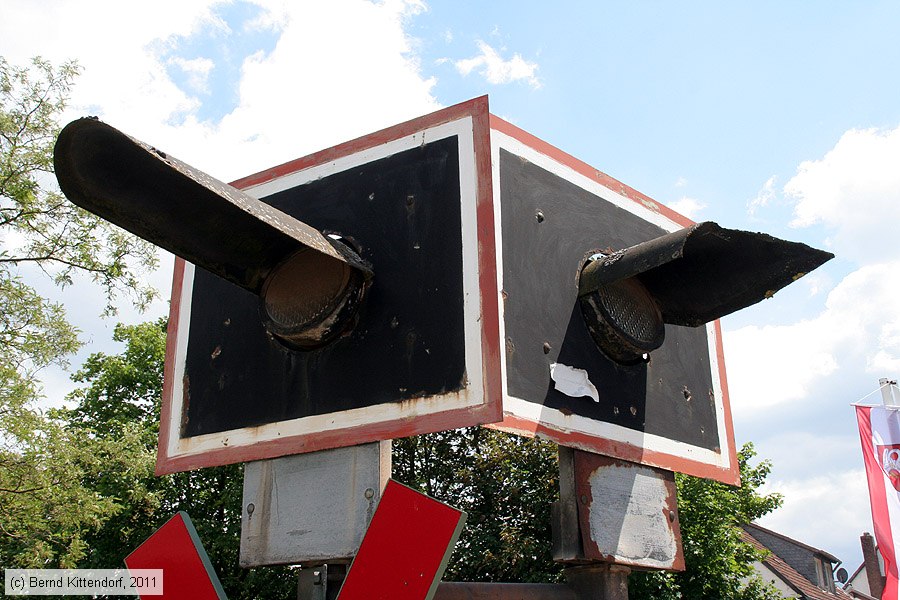

Bahnhof Göllheim - Dreisen Etwas mitgenommene Anlage zur Sicherung des Bahnübergangs am Haltepunkt Göllheim Dreisen, aufgenommen am 28. Mai 2011.
Photo: Bernd Kittendorf (info@bernd-kittendorf.de) |

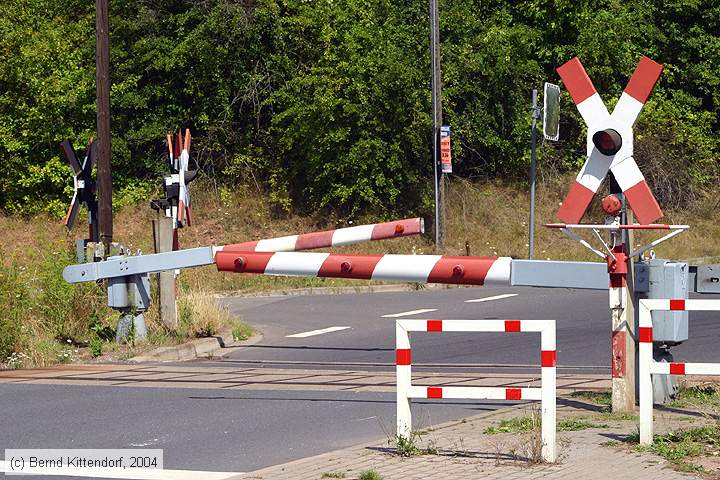

Bahnhof Großfurra Bahnübergang am Haltepunkt Großfurra. (12. August 2004)
Photo: Bernd Kittendorf (info@bernd-kittendorf.de) |
Bahnhof Großfurra Andreas-Kreuze am Bahnübergang am Haltepunkt Großfurra. (12. August 2004)
Photo: Bernd Kittendorf (info@bernd-kittendorf.de) |

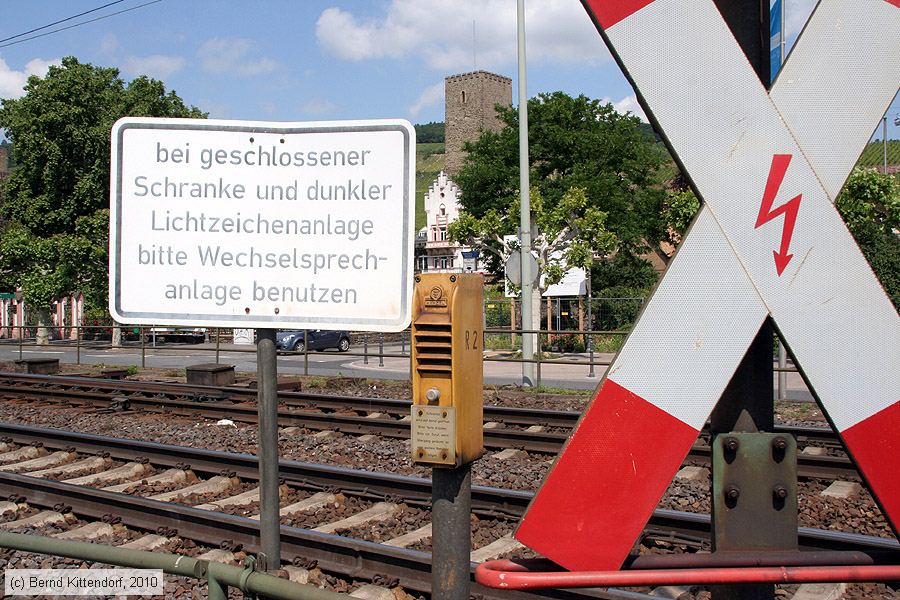

Bahnhof Rüdesheim (Rhein) Schild mit Benutzungsanleitung an einem der Bahnübergänge, aufgenommen am 22. Juni 2010. Bei geschlossener Schranke und dunkeler Lichtzeichenanlage soll die Wechselsprechanlage - der gelbe Kasten - benutzt werden.
Photo: Bernd Kittendorf (info@bernd-kittendorf.de) |
Bahnhof Wiesbaden Schierstein Beschrankter Bahnübergang unmittelbar beim Bahnhof Wiesbaden Schierstein, aufgenommen am 23. August 2011.
Photo: Bernd Kittendorf (info@bernd-kittendorf.de) |
The level crossing in Buir on the upgraded line Cologne-Düren
(ABS 4)
seen from the south side on 13 August 2002. All trains use the new highspeed
tracks in the background at this time. In the foreground the tracks for the
S-Bahn (urban trains) are under construction, for this reason the crossing is
closed for cars for some weeks. For pedestrians and bikers a temporary path
passes the building site. Note that only two of the four barriers are opened.
The southern barriers used to be further south in the past, when the trains
used the old tracks located where now the S-Bahn is built. If the level
crossing is still in service when the S-Bahn starts, it will be neccessary to
move them back.
Digital photo by Christoph Schmitz |
Rail crossing in Lathen (Germany) at the km 279,970. 25.04.2003
Digital photo by István Halász (hihihihi@freemail.hu) |
Temporary level crossing near Sindorf on the upgraded line Cologne-Düren
(ABS 4)
seen on 8 August 2001. The first and the third track are in service for some
months, the second was just built, so an access to the building site between
the tracks was needed. In the background is a new transformer station.
Digital photo by Christoph Schmitz |
Gebäude mit der Steuerung eines Bahnübergangs.
Building with the controlunit of a railroad crossing.
19.02.2004
Photo taken by Tobias Meyer, ers@bf-vln.de |
19 Jan 2001, Fichtenberg, Germany La 2 fuer Bahnübergang. Die Fahrzeit des Zuges verlägert sich hierdurch um ziemlich exakt eine Minute. Speed restriction to 20km/h (yellow triangles) for a level crossing. Timing the train I found that this causes an increase in travel time of pretty exacly one minute.
Digital photo by Klaus Föhl (kf@ph.ed.ac.uk) |
19 Jan 2001, Fichtenberg, Germany La 2 fuer Bahnübergang. Die Fahrzeit des Zuges verlägert sich hierdurch um ziemlich exakt eine Minute. Das Problem wird von der Eisenbahnaufsicht (EBO) in Fahrzeugen gesehen, die nach links in diesen Holzlagerplatz abbiegen wollen, durch Gegenverkehr daran gehindert werden könnten und dann mit dem hinteren Ende den Übergang blokierten. Speed restriction to 20km/h for this level crossing. Timing the train I found that this causes an increase in travel time of pretty exacly one minute. The problem, according to federal administration, is the possibility of long vehicles wanting to turn left into the timber storage area which might get stopped by oncoming traffic and thus fouwling the level crossing.
Digital photo by Klaus Föhl (kf@ph.ed.ac.uk) |
 |
07. March 2011, Groß-Gleidingen, Germany
Detail of a signal lamp of the level crossing in Groß-Gleidingen located between Braunschweig and Hanover. This type of warning lights manufactured by siemens was the first modern type of warning signs in Germany. Just a few installations are working nowadays.
07. März 2011, Groß-Gleidingen, Deutschland
Photo by Max Maaßen (vahroyal[at]web.de) |
07. March 2011, Groß-Gleidingen, Germany
Detail of a signal lamp of the level crossing in Groß-Gleidingen located between Braunschweig and Hanover. This type of warning lights manufactured by siemens was the first modern type of warning signs in Germany. Just a few installations are working nowadays.
07. März 2011, Groß-Gleidingen, Deutschland
Photo by Max Maaßen (vahroyal[at]web.de) |
"Grünes" Gleis bei Hachelbich (Strecke Sondershausen - Bretleben).
Schlechter Gleiszustand, Höchstgeschwindigkeit 30 km/h. Die Zukunft
der Strecke ist z.Z. unklar. 15. Juni 2003. "Green" track near Hachelbich (line Sondershausen - Bretleben). Track out of condition; maximum speed of trains 30 km/h. Possibly the line will be closed. 15 June 2003.
Photo: Thomas Wedekind, Jena (http://www.tom-wedekind.de) |
A railroad crossing in Loxstedt, near Bremerhaven. Originally it should have
been removed in the 70's already, but things went different and so it is
still there.
June 1998.
Photo by Jürgen Roßkamp (doc@fischtown.de) |

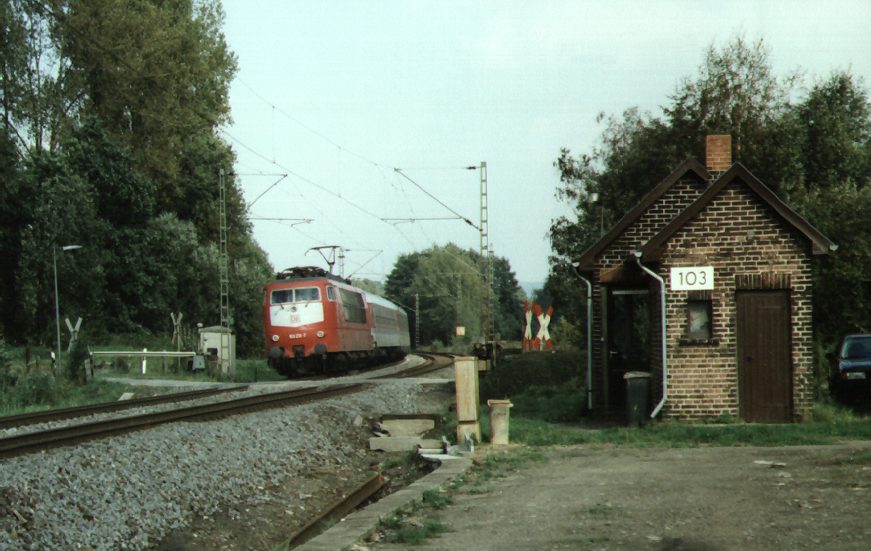

The hand operated level crossing at kilometer 103, between Lengrich and Natrup Hagen,
is the last of this kind on the Intercity line between Bremen and Münster.
Photo taken on october 3rd, 1996 by H. Pohlmann <pohlmah@uni-muenster.de> |
After the IC has passed, the gatekeeper has to turn the crank handle
in his small house to lift up the gates.
Photo taken on october 3rd, 1996 by H. Pohlmann <pohlmah@uni-muenster.de> |
In the small village of Olef, the Oleftalbahn Kall-Hellenthal runs across the
village square. Two men have to walk in front of the train to warn the traffic.
The line is served only on sundays in summer. The picture was taken through the
front window of RegioSprinter 6.001.1 of the Rurtalbahn, running towards Kall on
9 October 2005.
Digital photo by Christoph Schmitz (christoph.schmitz2@post.rwth-aachen.de) |
In the small village of Olef, the Oleftalbahn Kall-Hellenthal runs across the
village square (Dorfplatz). So this St. Andrew's Cross (meaning "give way to
trains") has an additional sign "Im gesamten Bereich des Dorfplatzes" ("In the
whole area of the village square"). The line is served only on sundays in
summer. Picture taken on 9 October 2005.
Digital photo by Christoph Schmitz (christoph.schmitz2@post.rwth-aachen.de) |
A radar scanner at the Freimersdorfer Weg level crossing in Cologne, located at
the northern end of the former station Bocklemünd (on the line to
Mönchengladbach), seen on 11 December 2004. In the foreground is the
Scanner itself, located at one corner of the crossing. At the three other
corners radar reflectors are placed (one visible in the background), which are
used for a self test of the device. Radar scanners are a relatively new
possibility to check if the crossing is free, by now this is normally done by
someone watching the crossing directly or by video. At least in Germany each
crossing with full barriers has to be checked if it is free after the barriers
were lowered. As this area is now controled from a central signalbox in
Duisburg, it is a big advantage that the check is automatic.
Digital photo by Christoph Schmitz (christoph.schmitz2@post.rwth-aachen.de) |
A radar reflector at the Freimersdorfer Weg level crossing in Cologne, located
at the northern end of the former station Bocklemünd (on the line to
Mönchengladbach), seen on 11 December 2004. These reflectors are placed at
three corners of the crossing, while at the fourth is the radar scanner itself,
which uses the reflectors for a self test. The reflector consists of a
rectangular corner of three panels, which reflects the radar beam right back
into the direction where it came from, and a cover. In the background you can
see the block signals which covers the crossing from trains coming from
Mönchengladbach. The signals can not be set to the proceed aspect until
the barriers are down and the radar scanner has reported that the crossing is
free.
Digital photo by Christoph Schmitz (christoph.schmitz2@post.rwth-aachen.de) |
Deutsche Bahn, Germany, Leipzig-Eilenburg railway line. Near Jesewitz station, June 2004. This strange "fence" sign beneath the road signalises a level crossing with barriers... Photo by Stephan R. Schilling, cervin@matterhorn.strs.de |
Deutsche Bahn, Germany, Leipzig-Eilenburg railway line. Near Jesewitz station, June 2004. The barriers are about closing. Photo by Stephan R. Schilling, cervin@matterhorn.strs.de |
Deutsche Bahn, Germany, Leipzig-Eilenburg railway line. Near Jesewitz station, June 2004. Photo by Stephan R. Schilling, cervin@matterhorn.strs.de |
Deutsche Bahn, Germany, Leipzig-Geithain railway line. Near Oberholz station, June 2004. Currently (21th June 2004) the line is closed for reconstruction. The level crossing barriers are not yet installed. Photo by Stephan R. Schilling, cervin@matterhorn.strs.de |
Deutsche Bahn, Güterring Leipzig (cargo ring - a system of railway tracks
surrounding Leipzig which are used by cargo trains only) Useless temporary level crossing. This is the line Leipzig-Eilenburg. Above the level crossing the provisional Güterring bridge can be seen.
Photo by Stephan R. Schilling 2003 |
Deutsche Bahn, Güterring Leipzig (cargo ring - a system of railway tracks
surrounding Leipzig which are used by cargo trains only) Simple system for locking all four keys which are needed for the four barriers of the level crossing (see strs_gr_5.jpg) by a single key. Located beneath the level crossing.
Photo by Stephan R. Schilling 2003 |
Deutsche Bahn, Germany, Sachsen. Haltepunkt Pönitz bei Leipzig. Sign says: Request opening of the barrier by pressing the button. Wait for attendant's permission. Photo von/by Stephan R. Schilling Mai/May 2003 |
Deutsche Bahn, Germany, Sachsen. Haltepunkt Pönitz bei Leipzig. This is a "Anrufschranke" - a barrier which is normally closed. It is opened only upon request, and many people cross the lines whithout waiting for the barrier to be opened. Photo von/by Stephan R. Schilling Mai/May 2003 |
Deutsche Bahn, Germany, Sachsen. Haltepunkt Pönitz bei Leipzig. Photo von/by Stephan R. Schilling Mai/May 2003 |
07. March 2011, Timmerlah, Germany
Detail of a signal lamp of the level crossing in Timmerlah located between Braunschweig and Hanover. This type of warning lights manufactured by siemens was the first modern type of warning signs in Germany. Just a few installations are working nowadays.
07. März 2011, Timmerlah, Deutschland
Photo by Max Maaßen (vahroyal[at]web.de) |
07. March 2011, Timmerlah, Germany
Detail of a signal lamp of the level crossing in Timmerlah located between Braunschweig and Hanover. This type of warning lights manufactured by siemens was the first modern type of warning signs in Germany. Just a few installations are working nowadays.
07. März 2011, Timmerlah, Deutschland
Photo by Max Maaßen (vahroyal[at]web.de) |
