Class |
NVR Number |
Axle Formula |
Number |
Year in Service |
Power [kW] |
Tractive Effort [kN] |
Max.Speed [km/h] |
Traction Type |
Voltage |
1st class |
2nd class |
|
Z 1000 |
|
EMU-1 |
18 |
1913 |
|
|
80/90 |
E |
650V= |
16 |
48 |
Mk1 live-rail commuter railcars (single-motor).
For Invalides-Versailles RG. Rebuilt to EMU-2 (1931). Former État Z
23011-23028. Rebuilt to 1.5kV (Z-3600) in 1937 (for Versailles-Juvisy) |
|
Z 1200 |
|
EMU-1 |
26 |
1912 |
|
|
70 |
E |
650V= |
16 |
48 |
Mk2 live-rail commuter railcars (dual-motor).
Later upgraded to 80km/h. For Invalides-Versailles RG then Puteaux-Issy
Plaine. Former État Z 23029-23054. (withdrawn 1966) |
|
Z 1300 |
|
EMU-2 |
40 |
1924 |
484 |
|
80 |
E |
650/750V= |
28 |
102 |
Mk3 live-rail commuter trainsets "Standard",
ex-État Z 23061, 65-72, 74-100, 02, 04, 06-08. Z-1320 rebuilt to
20kV-50Hz as Z-9055 (1950) (withdrawn 1978) |
|
Z 1401 |
|
EMU-2 |
8 |
1924 |
484 |
|
80 |
E |
650/750V= |
28 |
100 |
Modified (1927) Mk3 live-rail commuter trainsets
"Standard", ex-État Z 23062, 63, 73, 101, 03, 05, 09, 10. (withdrawn
1978) |
|
Z 1411 |
|
EMU-2 |
83 |
1927 |
484 |
|
80 |
E |
650/750V= |
28 |
102 |
Mk4 live-rail commuter trainsets "Standard",
nrs. 1411-69 & 75-98. ex-État Z 23112, 13, 16-18, 21, 23, 25-28,
31-34, 137-205 (withdrawn 1979) |
|
Z 1471 |
|
EMU-1/2 |
4 |
1927 |
484 |
|
80 |
E |
650/750V= |
0 |
130 |
Mk4 live-rail commuter trainsets "Standard",
(nrs. 1471-74), built with 2 cabs, for EMU-1 on Cardinet-Auteuil (56
seats, off-peak). ex-État Z 23111, 15, 19, 36. (withdrawn 1979) |
|
Z 1501 |
|
EMU-2 |
7 |
1927 |
484 |
|
80 |
E |
650/750V= |
28 |
102 |
Modified (1930) Mk4 live-rail commuter trainsets
"Standard", nrs. 1501-08. ex-État Z 23114, 20, 22, 24, 29, 30, 35.
(withdrawn 1979) |
|
Z 1511 |
|
EMU-2/3 |
59 |
1930 |
484 |
|
80 |
E |
650/750V= |
28 |
102 |
Mk5 live-rail commuter trainsets "Standard",
nrs. 1511-54 & 61-75. Some EMU-3 (28/176 seats). 19x declassified
in 1980 (130 seats). ex-État Z 23211-270 (withdrawn 1985) |
|
Z 3400 |
|
EMU-3 |
7 |
1938 |
820 |
|
80 |
E |
1500V= |
32 |
188 |
Commuter EMUs for Sceaux Line (South: Massy-St
Rémy), ordered as PO Z 23451-464. Pooled with CMP/RATP Z 23221-356 for
Luxembourg-St Rémy. Passed to RATP (1964), and renumbered 23401-414. |
|
Z 3600 |
|
EMU-2 |
0 |
1913 |
972 |
|
100 |
E |
1500V= |
|
168 |
Former live-rail (650V, Invalides-Versailles RG)
railcars Z 1200-18, rebuilt to EMU-2 (9x) with 1.5kV (1937), for
commuter services (Versailles-Juvisy). ex-État Z-23601-23609 (withdrawn
1973) |
|
Z 3700 |
|
EMU-2 |
20 |
1938 |
1150 |
|
130 |
E |
1500V= |
28 |
104 |
Articulated EMUs "Budd" (ex État Z 23701-23720),
for commuter services to/from Paris-Montparnasse and local services on
Paris-Le Mans (withdrawn 1985) |
|
Z 3800 |
|
EMU-1 |
5 |
1937 |
670 |
|
140 |
E |
1500V= |
0 |
34 |
Express railcars "Ramassage"(ex État Z
23801-805), for semi-fast services on Paris-Le Mans (withdrawn 1975) |
|
Z 4000 |
|
EMU-1 |
7 |
1904 |
167 |
|
65 |
E |
1500V= |
|
|
Former live-rail (600V, Paris Orsay-Juvisy)
railcars PO AE.1-7, rebuilt to 1.5kV (1934), ex-PO Z 23021-23027.
(withdrawn 1971) |
|
Z 4100 |
|
EMU-2/3 |
80 |
1925 |
560 |
|
90 |
E |
1500V= |
|
|
EMUs for commuter services to/from Paris-Orsay,
then locals (Southwest). ex-PO Z 23101-23180. (withdrawn 1985) |
|
Z 4181 |
|
EMU-2/3 |
7 |
1937 |
560 |
|
90 |
E |
1500V= |
|
|
EMUs for commuter services
to/fromTGV-R-POS_554_PE_1.jpg Paris-Orsay,
then locals (Southwest). ex PO-Midi Z 23181-23187. 4x refurbished
(EMU-2, 1978) for Les Aubrais-Orléans and St Pierre des Corps-Tours
shuttles. (withdrawn 1986) |
|
Z 4200 |
|
EMU-1 |
15 |
1930 |
500 |
|
70 |
E |
1500V= |
|
|
Electric railcars (close to BB-4100 & 4600),
to haul lighter local passenger services (Southwest). ex-Midi Z
23201-23215 (withdrawn 1976) |
|
Z 4300 |
|
EMU-1 |
15 |
1925 |
360 |
|
85 |
E |
1500V= |
|
|
Electric railcars for local services in the
Southwest. ex-Midi Z 23001-23015 (withdrawn 1973) |
|
Z 4400 |
|
EMU-2 |
15 |
1935 |
560 |
|
90 |
E |
1500V= |
|
|
EMUs similar to Class Z 4100 (more 1st-class)
for local services in the Southwest. ex-PO 23401-23415 (withdrawn 1985) |
|
Z 4500 |
|
EMU-1 |
15 |
1912 |
460 |
|
85 |
E |
1500V= |
0 |
42 |
Former electric railcars Midi E15, 17-30 (12kV
16.7Hz) rebuilt to 1.5kV with Lourdes-Pierrefitte, Tarbes-Bagnères
& Lannemezan-Arreau (1922). ex-Midi Z 23101-115. (withdrawn 1972) |
|
Z 4700 |
|
EMU-2 |
2 |
1947 |
1143 |
|
150 |
E |
1500V= |
44 |
120 |
Fast articulated EMUs (Somua-Alsthom). Ordered
as PO-Midi Z 23071-23072, prototypes for high-speed mainline EMUs
(180km/h). Ran express services around Toulouse. Z-4702 later upgraded
to 160/200km/h, to test tilting-car. (withdrawn 1968) |
|
Z 4900 |
|
EMU-1 |
15 |
1912 |
370 |
|
85 |
E |
12 kV 17 Hz |
0 |
48 |
Electric railcars for Perpignan-Villefranche.
ex-Midi E 1-14, 16 (withdrawn 1971). +14x for Lourdes-Pierrefitte,
Tarbes-Bagnères & Lannemezan-Arreau, rebuilt to 1.5kV as Z-4500
(1922). |
|
Z 5101 |
|
EMU-3 |
82 |
1954 |
900 |
|
120 |
E |
1500V= |
24 |
189 |
Commuter EMUs, for services to/from Paris-Gare
de Lyon/Austerlitz/Montparnasse, then local services around Lyon,
Limoges, Orléans and Tours. Middle trailer added in 1957. (withdrawn
1998) |
|
Z 5177 |
|
EMU-3 |
0 |
1985 |
496 |
|
70 |
E |
750V= |
0 |
136 |
Z-5100 EMUs (6x, nrs. 77-82), rebuilt to EMU-2
(single-class), adapted to 750V, live-rail (shoes) and higher
platforms, as Z-1500 replacement on Puteaux-Issy Plaine. (withdrawn
1993) |
|
Z 5300 |
|
EMU-4 |
145
|
1972 |
1180 |
|
130 |
E |
1500V= |
44 |
345 |
Commuter trains used from Paris Montparnasse and
Paris Gare de Lyon, 23x EMU-3 (withdrawn 12/2018) |
|
Z 5377 |
|
EMU-4 |
0 |
1972 |
1180 |
|
130 |
E |
1500V= |
44 |
|
Ex-Paris (RER C) commuter trainsets (10x), for
Paris-Chartres/Le Mans stopping services (TER Centre). (withdrawn 2007,
145 built) |
|
Z 6001 |
|
EMU-1 |
2 |
1951 |
1016 |
|
60 |
E |
20 kV 50 Hz |
0 |
|
50Hz-AC prototype EMUs, newly-built, for
Aix-Annecy. Originally numbered Z 9053-52. Upgraded to 25kV in 1953
(withdrawn 1970) |
|
Z 6004 |
|
EMU-2 |
0 |
1924 |
280 |
|
80 |
E |
20 kV 50 Hz |
0 |
32 |
50Hz-AC prototype EMU, rebuilt as Z-9055 in 1951
from Class 1300 (Z-1320), for Aix-Annecy. Upgraded to 25kV in 1953
(withdrawn 1972) |
|
Z 6006 |
|
EMU-3 |
4 |
1960 |
690 |
|
120 |
E |
25kV 50Hz |
36 |
237 |
50Hz-AC commuter EMUs, prototype for Class 6100.
Z-6008 with 1290kW and 26/209 seats (withdrawn 1997) |
|
Z 6100 |
|
EMU-3 |
84
|
1965 |
690 |
|
120 |
E |
25kV 50Hz |
36 |
244 |
Commuter trains used on Paris
Nord-Crépy and on Pontoise-Creil (withdrawn 12/2012) |
|
Z 6300 |
|
EMU-3 |
35 |
1967 |
615 |
|
120 |
E |
25kV 50Hz |
40 |
127 |
Commuter EMUs (Z6100-style) for Paris St Lazare
(Z-1300/1500 replacement), reversible top steps (for higher ex-Etat
platforms). Displaced to local services (Amiens, Metz &
Luxembourg), top steps removed (1988). |
|
Z 6400 |
94 87 0006 400
|
EMU-4 |
75
|
1976 |
2360 |
|
120 |
E |
25kV 50Hz |
0 |
332 |
Commuter EMUs used on Paris St. Lazare-Cergy/St
Nom/Versailles (lines L/J), all refurbished 1999/2007 (withdrawn 2020)
|
|
Z 6400 |
|
EMU-4 |
0
|
1976 |
2360 |
|
120 |
E |
25kV 50Hz |
0 |
264 |
Class 6400 EMUs refurbished and adapted (3x in
2005)
to Noisy le Roi-St Nom-St Germain shuttle, nrs. Z6479-Z6484 (withdrawn
2019)
|
|
Z 7101 |
|
EMU-1 |
33 |
1960 |
940 |
|
130 |
E |
1500V= |
12 |
58 |

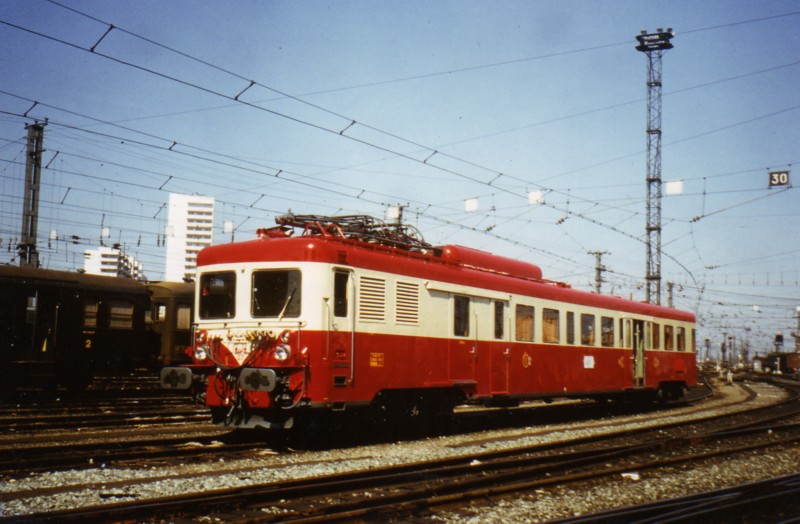

Electric railcars, for semi-fast/stopping
services on Paris-Lyon-Marseille and around Montpellier/Toulouse. Ran
either alone or with related trailers or with other trailers or
passenger cars (EMU-1 to 6). Z-7115 rebuilt to Z-7001 "Zébulon" in 1973. |
|
Z 7101 |
|
EMU-4 |
0 |
1983 |
940 |
|
130 |
E |
1500V= |
24 |
251 |
Z-7100 railcars refurbished in 1983/1988 (19x),
and rebuilt in with remodelled trailers to 4-car fixed formations, for
semi-fast/stopping services of TER Bourgogne, Rhône-Alpes, PACA and
Languedoc-Roussillon. (withdrawn 2006) |
|
Z 7121 |
|
EMU-2 |
0 |
1984 |
940 |
|
130 |
E |
1500V= |
12 |
111 |
Z-7100 railcars, refurbished in 1984/1988 (13x),
and rebuilt in with remodelled trailers to 2-car fixed formations, for
semi-fast/stopping services of TER Bourgogne, Rhône-Alpes, PACA and
Languedoc-Roussillon. (withdrawn 2006) |
|
Z 7300 |
94 87 0007 300
|
EMU-2 |
73
|
1980 |
1220 |
|
160 |
E |
1500V= |
24 |
127 |
Single-voltage (DC) Z2 EMUs, "Omnibus" interior,
69x modernised in 2 batches (1998-2002 and 2007-2009) (withdrawn 12/2023)
|
|
Z 7300 |
94 87 0007 300
|
EMU-2 |
0
|
1980 |
1220 |
|
160 |
E |
1500V= |
24 |
127 |
Single-voltage (DC) Z2 EMUs (ex-"Omnibus"
interior), refurbished for TER Centre (15x, TER2N-style, airco, 1998)
& Aquitaine (26x, no air-co, 2001-2002)
|
|
Z 7300 |
94 87 0007 300
|
EMU-2 |
0
|
1980 |
1220 |
|
160 |
E |
1500V= |
24 |
127 |
Single-voltage (DC) Z2 EMUs, "Omnibus" interior,
refurbished
(AGC-style, airco) 2007-2009 (28x)
|
|
Z 97381 |
|
EMU-2 |
2
|
1984 |
1220 |
|
160 |
E |
1500V= |
24 |
127 |
Single-voltage (DC) Z2 EMUs, "Omnibus" interior
(+2x converted from Z 7300),
owned by Région Midi-Pyrénées(2x) & Languedoc(2x). Refurbished
(AGC-style, airco) in 2008-2009
(witdrawn 2019)
|
|
Z 7500 |
94 87 0007 500
|
EMU-2 |
15
|
1982 |
1220 |
|
160 |
E |
1500V= |
32 |
119 |
Single-voltage (DC) Z2 EMUs, "Express" interior,
for TER Rhône-Alpes(12x) and Languedoc(3x).
Refurbished
(AGC-style, air-co) 2007-2010. (withdrawn 2022)
|
|
Z 8001 |
|
EMU-1 |
2 |
1962 |
940 |
|
130 |
E |
25kV 50Hz |
12 |
58 |
25kV version for Z-7100 Electric railcars, for
semi-fast/stopping services around Strasbourg/Nancy, then Annecy
(1968). Ran alone or with trailers or passenger cars. Previously
numbered Z 7134-35, then Z 9061-62. (withdrawn 1980) |
|
Z 9051 |
|
EMU-1 |
0 |
1925 |
1250 |
|
80 |
E |
20 kV 50 Hz |
0 |
74 |
50Hz-AC prototype EMU, rebuilt in 1951 from
Class 4100 (Z-4123), for Aix-Annecy. Upgraded to 25kV in 1953,
re-instated to Z-4123 in 1964. |
|
Z 9052 |
|
EMU-1 |
0 |
1926 |
1136 |
|
80 |
E |
20 kV 50 Hz |
0 |
74 |
50Hz-AC prototype EMU, rebuilt in 1953 from
Class 4100 (Z-4137), for Aix-Annecy. (withdrawn 1968) |
|
Z 9500 |
94 87 0009 500
|
EMU-2 |
18
|
1982 |
1220 |
|
160 |
E |
1.5kV=+25kV |
32 |
119 |
Dual-voltage Z2 EMUs, "Express" interior, for
TER Franche-Comté(4x) & Rhône-Alpes(14x). Refurbished
(AGC-style,
air-co) 2007-2010. (withdrawn 2022)
|
|
Z 99501 |
|
EMU-2 |
2 |
1982 |
1220 |
|
160 |
E |
1500V=+25kV |
32 |
119 |
Dual-voltage Z2 EMUs, "Express" interior, owned
by Région Franche-Comté. Refurbished (AGC-style, air-co) 2008/2009,
later renumbered Z 99581/99582 (withdrawn 11/2018)
|
|
Z 9600 |
94 87 0009 600
|
EMU-2 |
36
|
1984 |
1220 |
|
160 |
E |
1.5kV=+25kV |
24 |
127 |
Dual-voltage Z2 EMUs, "Omnibus" interior, for
TER Pays-de-Loire (23x), Rhône-Alpes (9x) &
Franche-Comté (4x).
Refurbished (AGC-style,
air-co) 2006-2009. (withdrawn 2022)
|
|
Z 92050 |
|
EMU-4 |
6 |
1996 |
2800 |
|
140 |
E |
1500V=+25kV |
0 |
492 |
Regional version of Mk2 Z2N (Z 20500), used on
stopping/semi-fast services of TER Nord-Pas-de-Calais, nrs. Z 401-406
(originally
38/454 seats), sold to Île-de-France in 2015 (now Z20888-899)
|
|
U 25500 |
94 87 0025 500
|
EMU-5 |
15 |
2006 |
800 |
|
100 |
E |
750V=+25kV |
0 |
74
|
Light-rail EMUs "Avanto" from Siemens for
Aulnay - Bondy and Esbly - Créchy-la-Chapelle (Paris). 750V not in use.
Sets nrs. TT 01-15, 12 more used
on Mulhouse-Thann(-Kruth) (for sale in 2022, replaced by U 53700)
|
