HZ withdrawn electric locomotives

  Class NVR Number Axle Formula Number Year in Service Power [kW] Tractive Effort [kN] Max.Speed [km/h] Traction Type Voltage 1st class 2nd class
1061-0
Bo'Bo'Bo' 23
1960 2640 283 120 E 3000V= --- ---
Was JZ 362, based on FS(I) class E.646 pre-series, built by Ansaldo(I), 2 sold to FNM(I) (last 4 stored 01/2013)
1061-1
Bo'Bo'Bo' 10
1960 2640 283 120 E 3000V= --- ---
Very similar to class 1061-0, slightly improved, 1 sold to FNM(I) (last 6 stored 01/2013)
1161
Bo'Bo'Bo' 0
1988 3869
120 E 25kV 50Hz --- ---
Was JZ 462, 2 units rebuilt for AC from class 362 (now 1061)

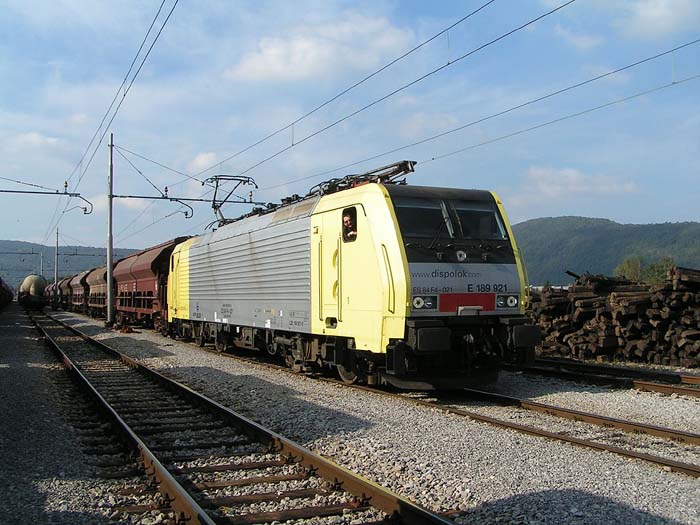

1241
Bo'Bo' 2 2005 6400 300 140 E 1.5+3+15+25kV --- ---
Quadruple-voltage locomotives type ES64F4 leased from Dispolok(D), for Rijeka line, nrs. 003/004 (ES64F4 021/022)

HZ withdrawn diesel locomotives and shunters

  Class NVR Number Axle Formula Number Year in Service Power [kW] Tractive Effort [kN] Max.Speed [km/h] Traction Type Voltage 1st class 2nd class
2041-1
Bo'Bo' 1 1961 614
80 DE Diesel --- ---
Rebuilt from 2041-072, probably modernized
2042-0
Bo'Bo' 2 1964 680
80 DE Diesel --- ---
Was JZ 643, light freight locomotives "Djurica", similar to SNCF 463400 (withdrawn 2016)
2042-1
Bo'Bo' 1 1964 680
80 DE Diesel --- ---
One locomotive class 2042 modernized, nr. 2042-101 (stored in 2012)
2043
A1A'A1A' 6 1991 1433
124 DE Diesel --- ---
Was JZ 646, rebuilt from class 661/2061 in 1991-1999 with electric train heating (withdrawn 12/2010)
2061
Co'Co' 44 1960 1433
124 DE Diesel --- ---
Was JZ 661, built by GM(USA), freight locomotives with steam heating, nrs. 001-043 and 101 (withdrawn 2007)
2131
C 27 1958 292
30/60 DH Diesel --- ---
Was JZ 731, shunters built by Jenbacher Werke(A) (25+23 built)
2133-0
C 4 1955 478 118 30/60 DH Diesel --- ---
Was JZ 734-0, second-hand DBAG(D) class 260/360 (30 bought by JZ in 1985)
2133-1
C 1 1955 478 132 30/60 DH Diesel --- ---
Was JZ 734-1, second-hand DBAG(D) class 261/361 (8 bought by JZ)
2141
B'B' 1 1977 1176
120 DH Diesel --- ---
Was JZ 743, prototype locomotive from Djuro Djakovic Works

HZ withdrawn trainsets and motor cars

  Class NVR Number Axle Formula Number Year in Service Power [kW] Tractive Effort [kN] Max.Speed [km/h] Traction Type Voltage 1st class 2nd class

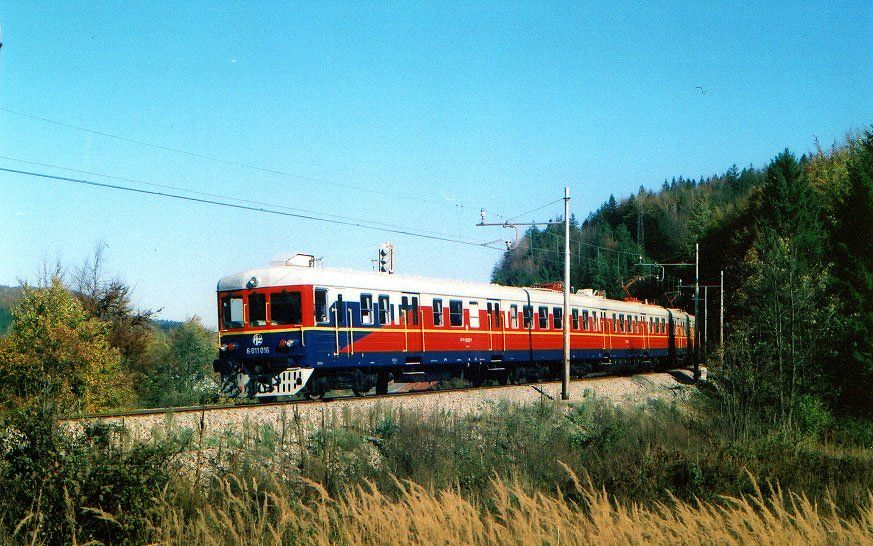

6011
EMU-3 3 1964 696
110 E 3000V= 0 180
Was JZ 311/15, electric DC trainsets built by Pafawag(PL), modernised, operated around Rijeka (withdrawn 2009)
6111-1
EMU-3 2 1977 300
120 E 25kV 50Hz
0
First-class only version of class 6111 (13 built)
7021
DMU-5 6 1972 386
120 DE Diesel
252
Was JZ 610, diesel trainsets built by Brissoneau & Lotz(F), two motor cars
7221
DMU-1 45 1955 110
90 DM Diesel 0 56
Was JZ 812, rail busses similar to DBAG(D) 795 "Schienenbus" (274 built)

Last update: 17-03-2023
